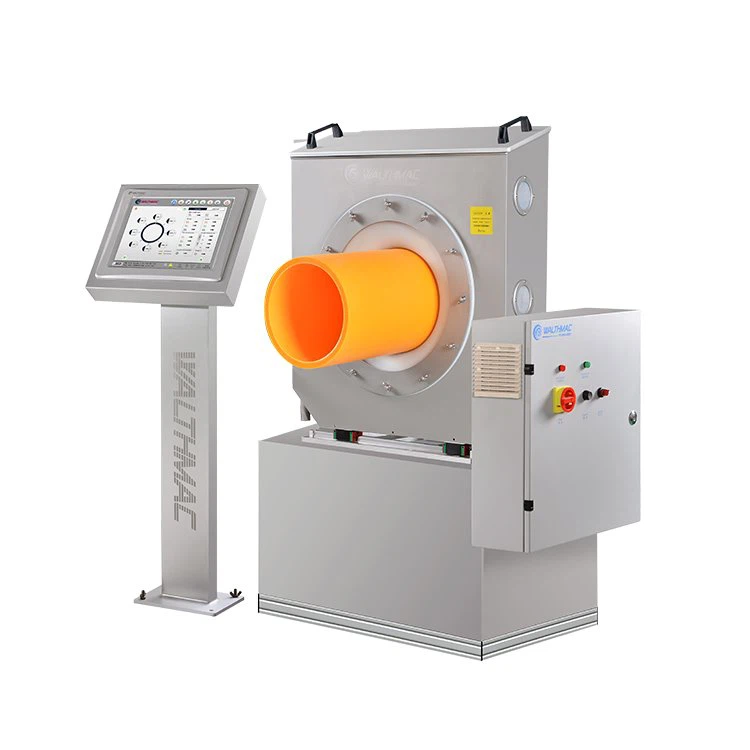

Introduction:Thickness gauge is an auxiliary equipment that intsalled after the vacuum box of the extrusion line to check the plastic pipe wall thickness.Walthmac thickness gauge adapts ultrasonic waves to detect the wall thickness of plastic pipes with bubble-free impurity water as the medium. And it is also a real-time monitoring system for quality control. The core components all imported from top international branded suppliers.
Features:
1. Including wall thickness, OD, eccentricity and out-of-roundness detection
2.Precisely thickness measuring, highest precision reach to 0.001mm
3.Wide measurement range,measurable OD: 0.25mm-1600mm
4.Low power consumption < 30w
5.Multi-layer pipes measurement
Configuration:
Model | Probes | OD | Thickness measuring range（mm） |
ULTRAMAC 024-4T | 4 | 4-24mm | 0.25-6 |
ULTRAMAC 032-4T-OD | 4 | 6-32mm | 0.25-6 |
ULTRAMAC 032-4T | 4 | 10-32mm | 0.25-6 |
ULTRAMAC 063-4T | 4 | 16-63mm | 0.25-6 |
ULTRAMAC 063-4T/2 | 4 | 16-63mm | 0.25-6 |
ULTRAMAC 125-4T | 4 | 20-125mm | 0.5-12.7 |
ULTRAMAC 160-4T | 4 | 32-160mm | 1.27-20 |
ULTRAMAC 160-8T | 8 | 32-160mm | 1.27-20 |
ULTRAMAC 250-4T | 4 | 90-250mm | 1.27-20 |
ULTRAMAC 250-8T | 8 | 90-250mm | 1.27-20 |
ULTRAMAC 315-4T | 4 | 110-315mm | 2.5-50.8 |
ULTRAMAC 315-8T | 8 | 110-315mm | 2.5-50.8 |
ULTRAMAC 450-4T | 4 | 160-450mm | 2.5-50.8 |
ULTRAMAC 450-8T | 8 | 160-450mm | 2.5-50.8 |
ULTRAMAC 630-4T | 4 | 250-630mm | 7.5-127 |
ULTRAMAC 630-8T | 8 | 250-630mm | 7.5-127 |
ULTRAMAC 800-4T | 4 | 315-800mm | 7.5-127 |
ULTRAMAC 800-8T | 8 | 315-800mm | 7.5-127 |
ULTRAMAC 1000-8T | 8 | 560-1000mm | 7.5-127 |
ULTRAMAC 1000-16T | 16 | 560-1000mm | 7.5-127 |
ULTRAMAC 1200-8T | 8 | 800-1200mm | 7.5-127 |
ULTRAMAC 1200-16T | 16 | 800-1200mm | 7.5-127 |
ULTRAMAC 1600-8T | 8 | 800-1600mm | 7.5-127 |
ULTRAMAC 1600-16T | 16 | 800-1600mm | 7.5-127 |

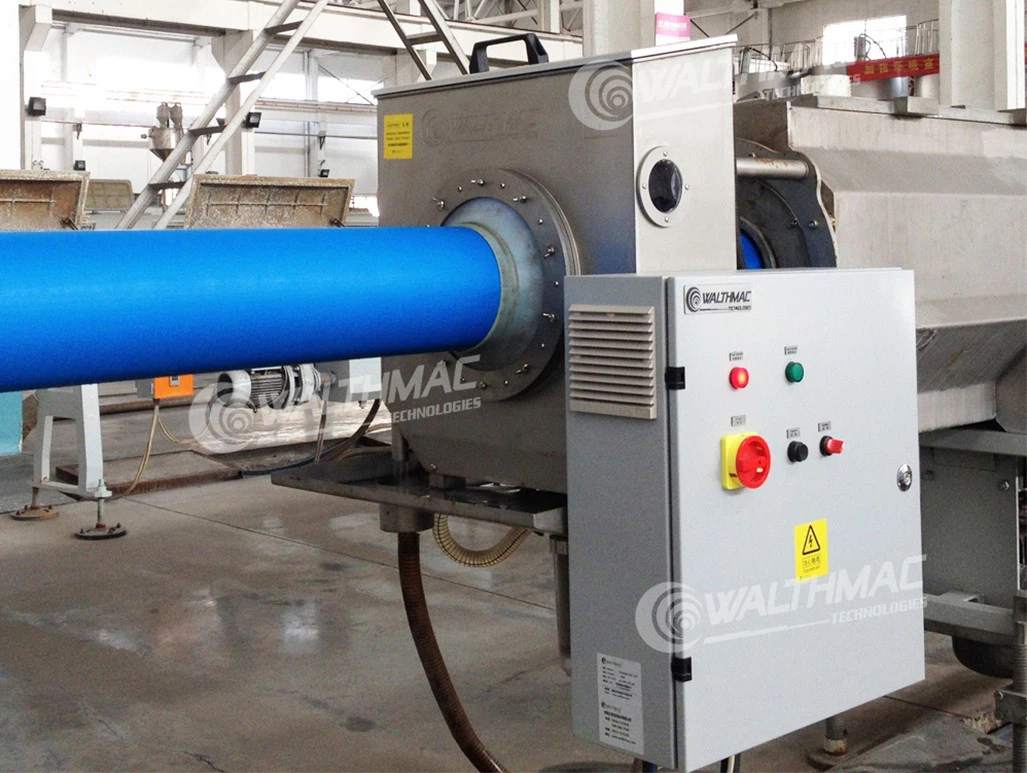

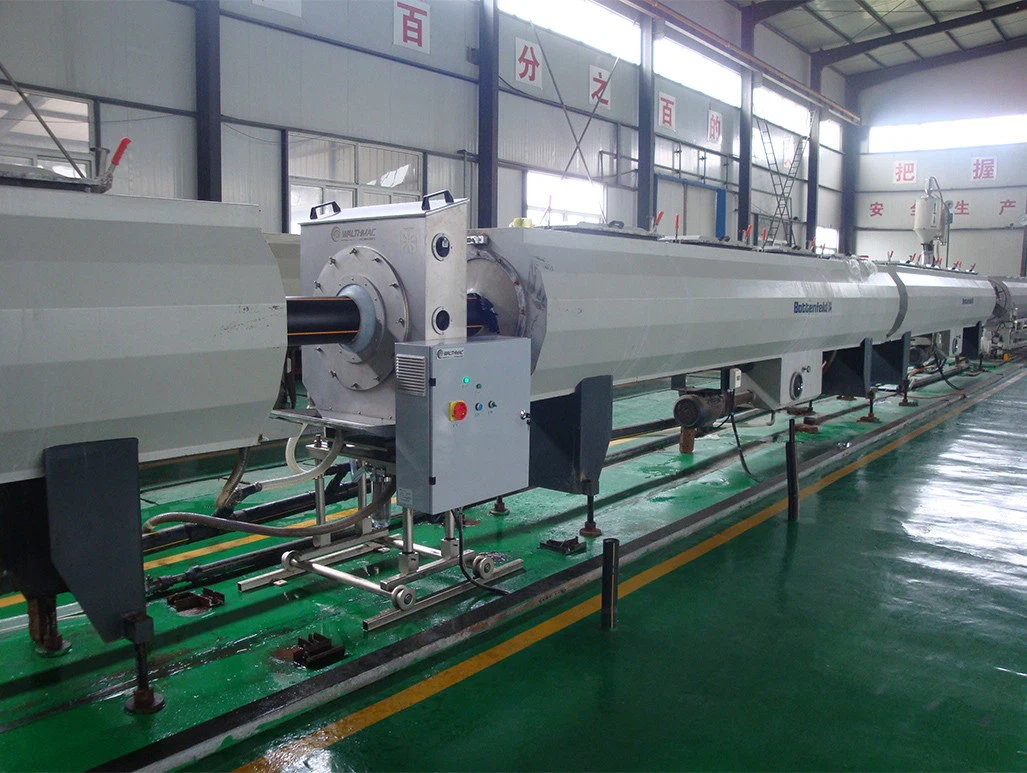

Working Status:
Our products work well in many large manufacturers.
FAQ:
Q1. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q2.Are you manufacture or trading company?
A:We are manufacture.All of our products made by ourselves.
Q3:How about the lead time ?
A:Usually one month after the contract confirmed.
