Pipe thickness measurement gauge

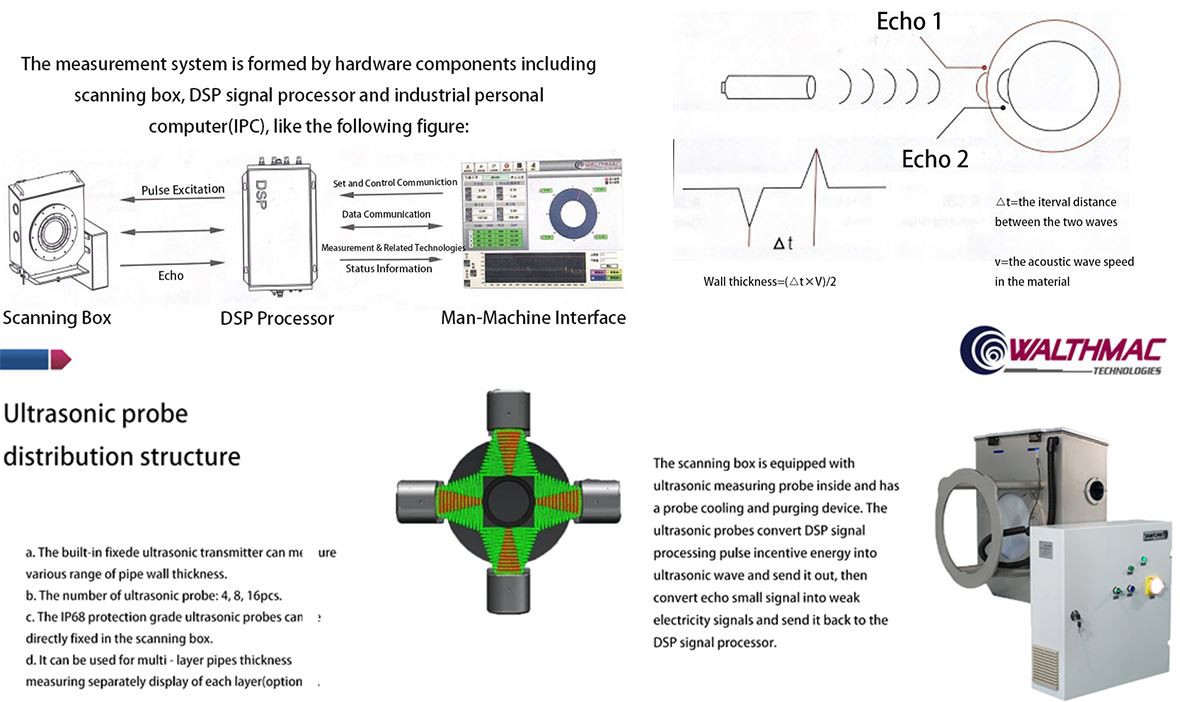

Walthmac Pipe Thickness Measurement Gauge is a monitoring device for plastic tube production based on the ultrasonic scanning system. The operator only needs to view the data on the man-machine interface that controls the ultrasonic thickness gauge, and the wall thickness, outer diameter, concentricity, and other data collected by the high-sensitivity probe will be displayed. Fully automatic online QC work, high efficiency, and high precision.
Model | Configuration | The OD measuring range |
ULTRAMAC 063-4T | 4 probes | 3.75-63mm |
ULTRAMAC 160-4T | 4 probes | 32-160mm |
ULTRAMAC 250-4T | 4 probes | 90-250mm |
ULTRAMAC 315-4T | 4 probes | 110-315mm |
ULTRAMAC 450-4T | 4 probes | 160-450mm |
ULTRAMAC 630-4T | 4 probes | 250-630mm |
Application: PP-R/HDPE/PE-X, PE-RT/medical catheter/multi-layer tubing quality control.
A. Real-time monitoring of pipe wall thickness, pipe diameter, ovality, concentricity
B. Automatically mark unqualified pipes to facilitate waste identification.
C. Online detection, short startup time.
D. Measurement accuracy error: ≤±0.01mm
E. Measurable outer diameter: 0.25 to 1600 mm
F. Shorten boot time and reduce product scrap rate
G. Complete the function of recording and archiving production data, and make quality report for each tube (optional).
The service lifetime of Walthmac Pipe Thickness Measurement Gauge is over 10 years. Stainless steel metal body to prevent corrosion.
Strong industry-standard packaging, can be by the terms of the contract on time to deliver each order to our customers.
Q1. What about the after-sales service?
We have after-sales team to solve any problems about machine installation, commissioning and maintenance.
Q2. What's the warranty of your products?
We offer 15 months long warranty period starting from machine leaving factory.
Q3. What are the advantages comparing with other suppliers?
Our engineers have more than 10 years of field experiences for plastics auxiliary equipment. All our products are designed and manufactured by our own factory. We are more competitive in price and quality of the machines.
Walthmac 101 class ''High-Density Polyethylene (HDPE)''
Compared with other types, HDPE is special in that its polymer chains have not been branched for a long time, which makes them very dense and therefore stronger and thicker than PET. HDPE is commonly used as food bags, opaque milk, juice containers, shampoo bottles and medicine bottles.
HDPE is not only recyclable, but also relatively more stable than PET. It is considered to be a safer option for food and beverage use, although some studies have shown that it can filter out estrogen additives, and when exposed to ultraviolet light, may damage the human hormonal system.
