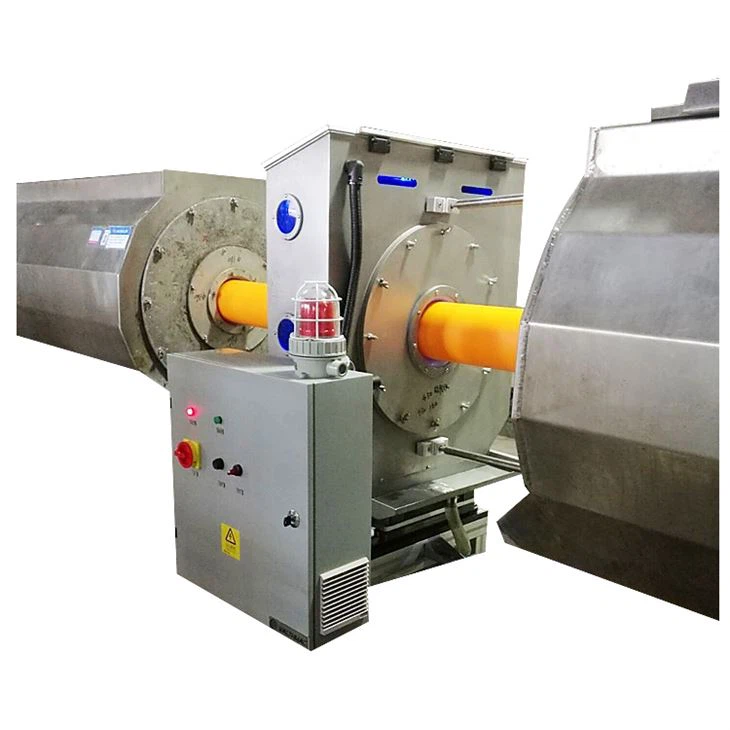

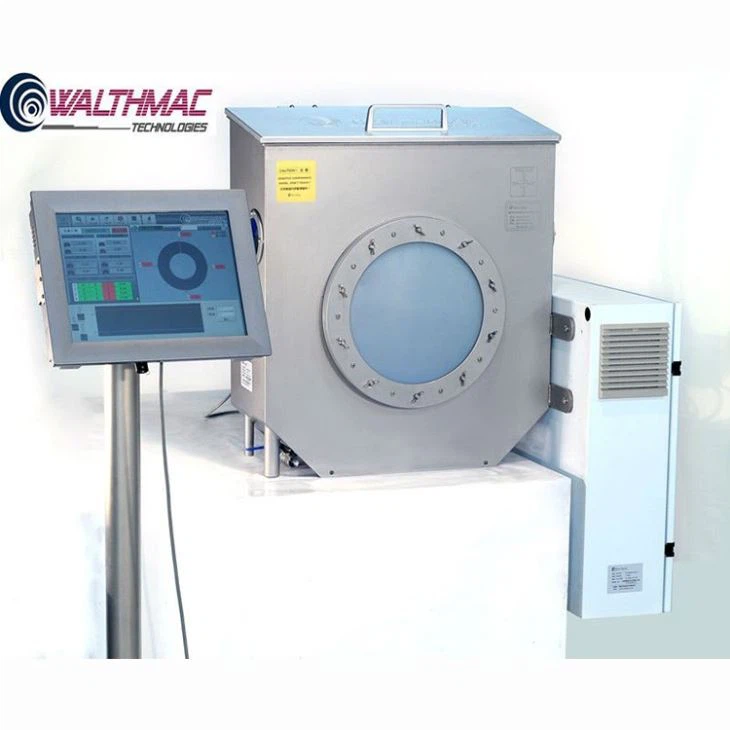

WALTHMAC ULRAMAC ultrasonic online thickness measuring system is a highly advanced technology that provides real-time monitoring of plastic pipe quality. This system is designed to offer accurate measuring of various geometric dimensions, such as pipe wall thickness, and it includes world-class quality ultrasound, data processing software, and hardware.
The main aim of this ultrasonic online thickness measuring system is to ensure that plastic pipe quality is maintained at the highest possible standards. By providing accurate measurements in real-time, this system helps to reduce the risk of defects and other quality issues in plastic pipe products.
With the ULRAMAC ultrasonic online thickness measuring system, manufacturers can now enjoy cost-effective monitoring of their production processes. This system eliminates the need for manual measurements and reduces the potential for human error, which can affect the accuracy of measurements.
System specification
Model | Configuration | OD Measuring Dange (mm) | Wall thickness measuring range (mm) |
ULTRAMAC 032-4T | 4 | 10-32 | 0.25-6 |
ULTRAMAC 063-4T | 4 | 16-63 | 0.25-6 |
ULTRAMAC 063-4T/2 | 4 | 16-63 | 0.25-6 |
ULTRAMAC 125-4T | 4 | 20-125 | 0.5-12.7 |
ULTRAMAC 160-4T | 4 | 32-160 | 1.27-20 |
ULTRAMAC 160-8T | 8 | 32-160 | 1.27-20 |
ULTRAMAC 250-4T | 4 | 90-250 | 1.27-20 |
ULTRAMAC 250-8T | 8 | 90-250 | 1.27-20 |
ULTRAMAC 315-4T | 4 | 110-315 | 2.5-50.8 |
ULTRAMAC 315-8T | 8 | 110-315 | 2.5-50.8 |
ULTRAMAC 450-4T | 4 | 160-450 | 2.5-50.8 |
ULTRAMAC 450-8T | 8 | 160-450 | 2.5-50.8 |
ULTRAMAC 630-4T | 4 | 250-630 | 7.5-127 |
ULTRAMAC 630-8T | 8 | 250-630 | 7.5-127 |
ULTRAMAC 800-4T | 4 | 315-800 | 7.5-127 |
ULTRAMAC 800-8T | 8 | 315-800 | 7.5-127 |
ULTRAMAC 1000-8T | 8 | 560-1000 | 7.5-127 |
ULTRAMAC 1000-16T | 16 | 560-1000 | 7.5-127 |
ULTRAMAC 1200-8T | 8 | 800-1200 | 7.5-127 |
ULTRAMAC 1200-16T | 16 | 800-1200 | 7.5-127 |
ULTRAMAC 1600-8T | 8 | 800-1600 | 7.5-127 |
ULTRAMAC 1600-16T | 16 | 800-1600 | 7.5-127 |
The Ultrasonic Online Thickness Measuring System has several advantages that make it an ideal choice for those looking for high-quality measurement solutions.
（1） the system comes with high-quality parts, and the key components are imported, ensuring that you get accurate, reliable, and consistent results every time.
（2） the system supports remote monitoring, providing you with the flexibility to monitor your measurements from a remote location. This feature is excellent for those who are always on the move or have multiple monitoring locations.

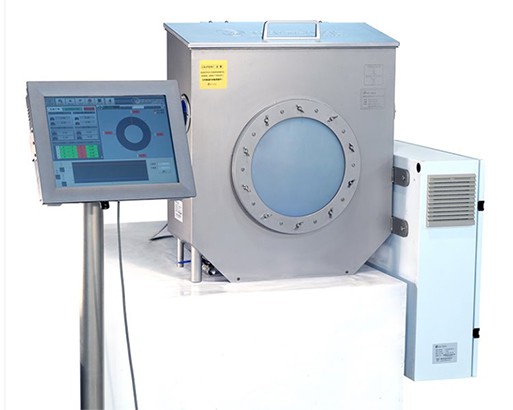

（3） the system also has a multi-layer pipe measurement option, which is great for those looking to measure the thickness of multiple layers of pipe simultaneously. This feature saves time and increases efficiency, making it an ideal choice for those who need to measure multiple layers of pipe.
（4）the system has low measurement power consumption (<30W), making it an eco-friendly option that won't drain your resources.
（5）the system boasts of a high precision measurement accuracy of 0.001mm, ensuring that you get accurate and reliable results every time.
（6） the system has a measurement range of 10~1600mm for OD measurement and 0.25~127mm for wall thickness measurement, making it an ideal solution for a wide range of applications.
Ultrasonic Online Thickness Measuring System application field

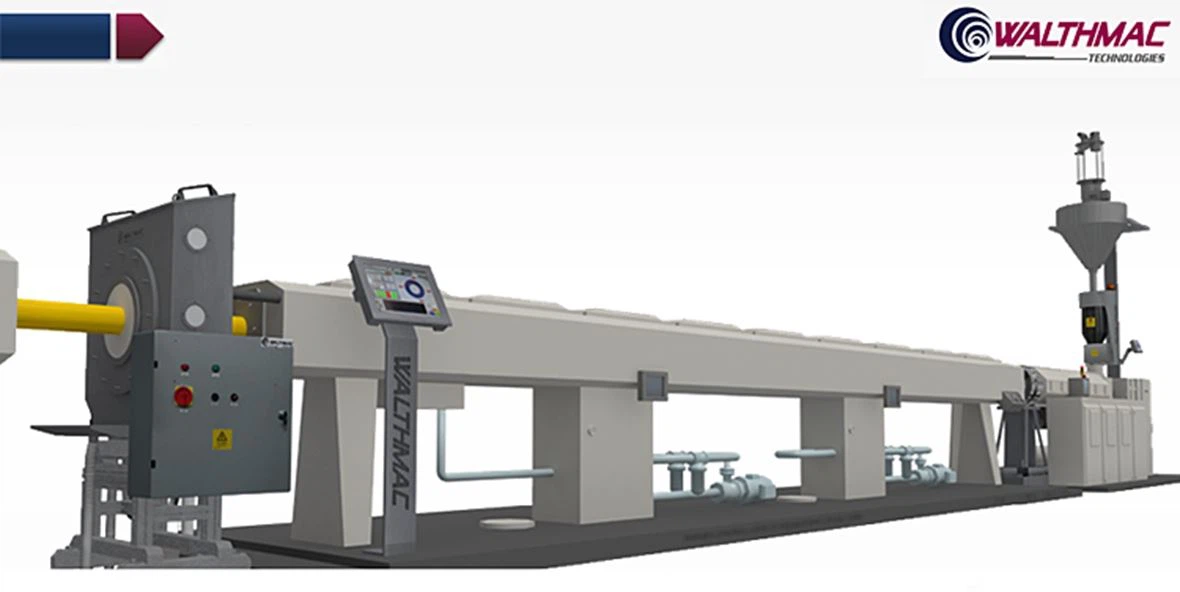

1. Wildly applies to the gas pipe, water supply pipe, catheter, and medical catheter production line.
2. The key feature of our product is high precision monitoring with real-time alarm. Avoid any unqualified products released to the market.
3. Full automation, easy to operate. suitable for every manufacturer of pipe production.
The Ultrasonic Online Thickness Measuring System
A. Adopt high-quality parts, core component supplied from international branded company.
B. Remote monitoring (optional)
C. Multilayer pipe measurement (optional)
D. Low power using (<30W)
E. Maximum measurement precision 0.001mm
F. The measuring range of outer diameter is 0.25~1600mm
G. Drained out the production quality risk of plastic pipe, increase your market reputation and market share.
H. Shorten start uptime and reduce the product rejection rate
Ultrasonic Online Thickness Measuring system working principle
The Ultrasonic Online Thickness Measuring System is a highly advanced technology that is utilized to measure the thickness of multi-layer pipes. It operates on the principle of ultrasonic waves that are emitted and produce echoes on different surfaces of the pipe. The echo time is then used to calculate the thickness of each layer accurately.
This system is designed to be highly efficient and accurate, providing measurements that are reliable and error-free. With its advanced technology and precise calculations, it ensures that the thickness of each layer is measured correctly, allowing for proper maintenance and repair.
The Ultrasonic Online Thickness Measuring System is an essential tool in various plastic industries It helps ensure the safety and reliability of pipelines by providing accurate measurements of their thickness and detecting any corrosion or damage.
This technology has significantly improved the efficiency of inspections and maintenance activities, reducing downtime and saving costs. It has also enhanced the safety of pipeline operations by identifying potential issues before they become major problems.
