220V Twin screw side feeder (GD-D-35)
The 220V Twin screw side feeder (GD-35) is an advanced weight-loss principle side feeder that uses screw dynamic adjustment technology for high precision and stability. After connecting with the host computer signal, it can adjust the feeding amount in real time with the dynamic change of the main material, thus improving the production efficiency and product quality. The system is driven by servo motor and closed loop control, and adopts dynamic error correction algorithm, which greatly improves the dosing precision and ensures the stability of product quality. In addition, the side feeder also uses a standard adapter design, which is easy to connect to the production line, further improving production efficiency. As a reliable and efficient production equipment, Twin screw side feeder (GD-35) will provide a full range of support and guarantee for the development of enterprises.
| MODEL | GD-D-35 | ||
| Throughput(L/H) | 0.4 – 10 | Dimensions(mm) | 700 * 280 * 710 |
Applicable Materia | masterbatch, Powder and Auxiliarie | Precision error of Dosing | < <0.3~0.5% |
Weighing Resolution | 1 per 4 million | Control Unit | microprocessor |
Communication interface | multiple industrial fledbus are available | Driven Elemen | servo drive |
Material | stainless steel, Aluminum | Power | 0.05-0. 2kw |
| Power Supply | 220V AC(customized power supply is available) | ||
FUNCTION AND PERFOFRMANCE
■High-precision loss-in-weight metering system (resolution: one per four millions)
■Servo system (imported), closed loop control, fast response
■Patent interior screw feeding mechanism
■Self- adaption ratio control, automatic correction of feeding error, the highest precision error is
■less than 0.3%*1
■Suitable for different types of materials (including: granular, powder, and etc.)
■Underlying hardware and software control, more reliable operation
■Optional standard adapter
■Minimum capacity is as low as 100g / h
■Maximum dynamic feeding range: 100 times'2
■Power Supply：220V AC

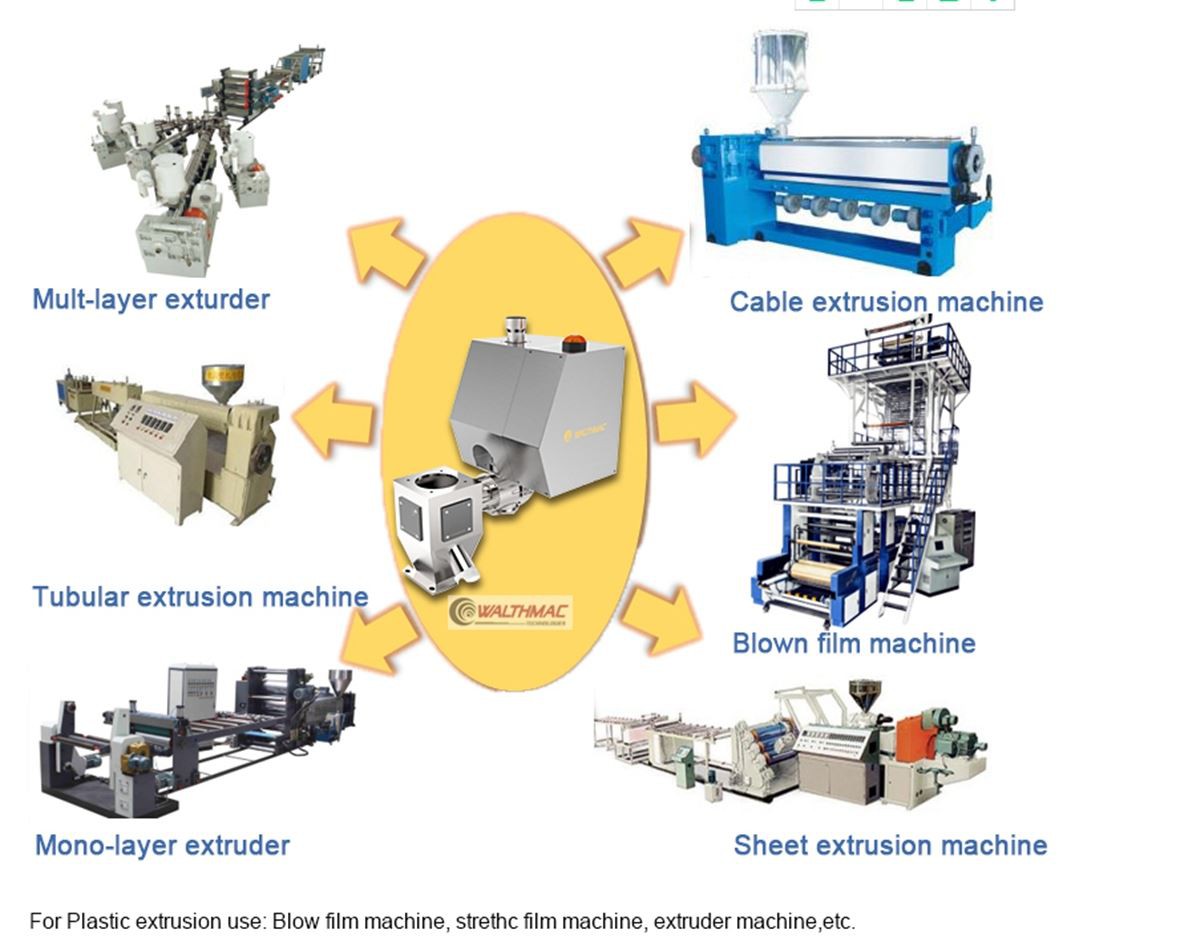

Applications: extruder machine, film blown molding machine, injection machine for small quantity additives or color masterbatch high accuracy continuous dosing.

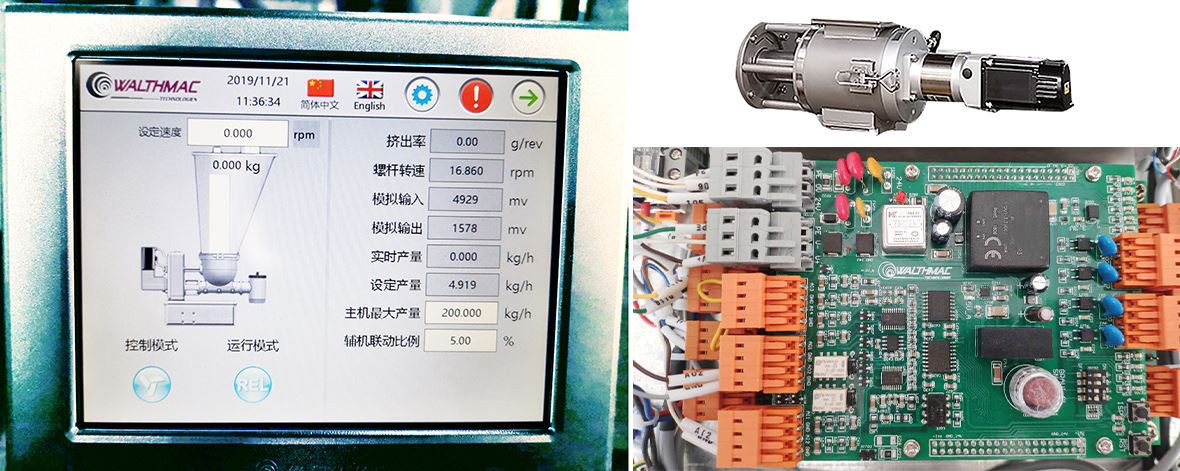

Products Detail
1. Walthmac full intellectual property rights HMI
2. Paten screw feeding structure
3. DSP: self-developed motherboard for core data processing.
Twin Screw Side Feeder Working principle
220V AC Twin screw side feeder is a kind of high precision and high efficiency material conveying equipment. Using the principle of weightlessness, the feeding screw can be dynamically adjusted according to the setting value of dosing, with high precision. After the side feeder is connected with the upper computer signal, the feeding amount is adjusted according to the dynamic change of the main material. The system adopts servo motor drive, closed-loop control and dynamic error correction algorithm to improve the dosing accuracy. It is easy to connect with the production line through standard adapter.
OEM Services:
220V AC Twin-screw side feeder adopts advanced technology and high quality material manufacturing, quality assurance. The equipment has the advantages of high reliability, good safety, stable operation, easy maintenance, etc., and can be widely used in pharmaceutical, food, chemical, plastics and other fields.
We are committed to providing customers with high quality equipment and services, continuous development and innovation, improve the performance and quality of products to meet customer needs. We believe that the twin-screw side feeder will provide customers with more efficient and accurate material handling solutions and become the right-hand man on the customer's production line.
