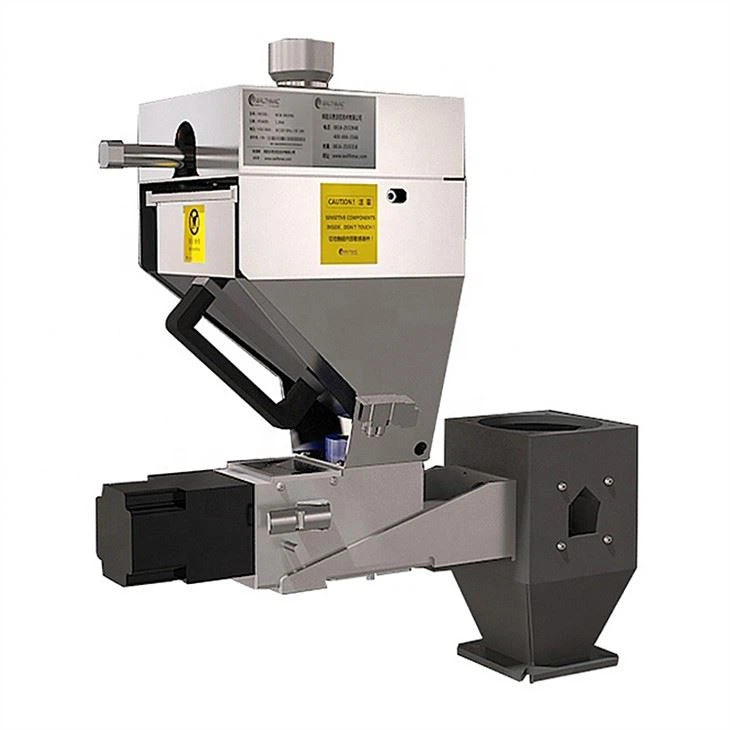

Loss-in-weight screw Feeder for plastic/chemical industry color masterbatch & additive
Walthmac GD series Loss-in-weight screw Feeder is a reliable and efficient solution for the plastic/chemical industry, especially for color masterbatch and additive applications. The system works by continuously weighing and feeding the material into the process equipment. It is a highly accurate and precise method that ensures consistent and uniform quality of the end product.
The Walthmac GD series Loss-in-weight screw Feeder is an advanced version of the loss-in-weight screw feeder that can be used separately or combined with other raw material process equipment. This versatile feeder is designed to work seamlessly with extruder, blown, and injection lines. It can also be integrated with a single HMI for easy and convenient control.
With the help of the loss-in-weight screw feeder, the plastic/chemical industry can greatly improve the production efficiency and reduce the wastage of material. The color masterbatch and additive applications require precise measurement and mixing of different components, and the loss-in-weight screw feeder provides a reliable and accurate solution for this purpose.
Products Description
Walthmac Loss-in-weight screw Feeder working throughput range from 0.05 to 40 KG per hour with error rating at ±0.5%.
| Model | Throughput(L/H) | Dimensions Size/mm |
| GD-D-20 | 0.05-1.2 | 700*280*710 |
| GD-D-25 | 0.1-3 | 700*280*710 |
| GD-D-30 | 0.2-5 | 700*280*710 |
| GD-D-35 | 0.4-10 | 700*280*710 |
| GD-D-40 | 0.6-15 | 700*280*710 |
| GD-D-45 | 1-25 | 700*280*710 |
| GD-D-55 | 3-40 | 700*280*710 |
Products Description

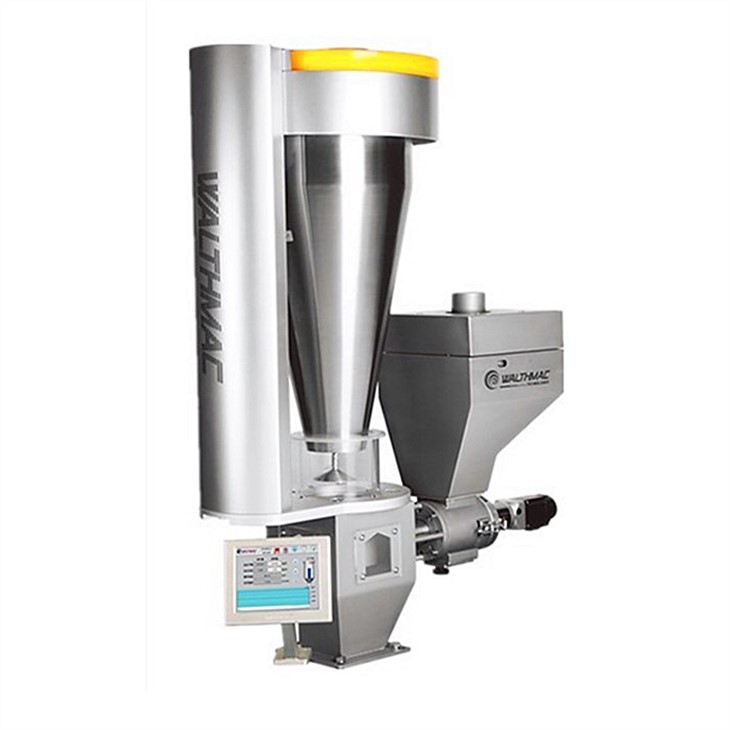

Walthmac GD series Loss-in-weight screw Feeder were Wildly used in plastic/pharmacy/chemical industry to handle small proportion or complex raw materials formula dosing feeding.the loss-in-weight screw feeder is an essential component for the plastic/chemical industry. The Walthmac pellet gravimetric side feeder is a state-of-the-art solution that offers excellent performance and flexibility. It is a positive step towards improving the efficiency and quality of the production process.
loss-in-weight screw feeder advantage
The loss-in-weight screw feeder is an essential equipment in the plastic and chemical industry, particularly in the production of color masterbatch and additives. This feeder offers several advantages that make it ideal for this industry, and it's a valuable investment for any company.
Unique designed screw feeding structure
this feeder is its advanced technology that's incorporated into its unique screw feeding structure. It's designed to ensure that the material is fed accurately and consistently to the production line. Moreover, it's equipped with state-of-the-art hardware components that guarantee its efficiency and durability.

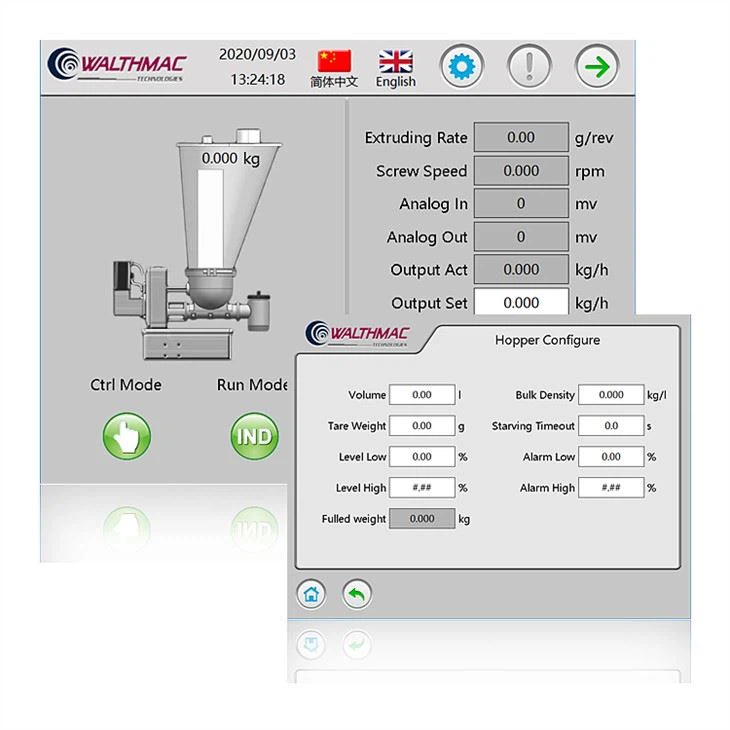

Walthmac HMI
this feeder is its Walthmac HMI, which is easy to use and offers seamless control during operation. It allows operators to monitor and adjust the feeding rate and flow as needed. Additionally, the feeder employs a DSP to process data collected from the production line and previously set values. This ensures that the feeding process is controlled and optimized for maximum efficiency.
stainless steel structure
The feeder's stainless steel structure also offers various benefits, including high resistance to corrosion and easy maintenance. These properties make it ideal for use in the harsh environments of chemical and plastic manufacturing plants.

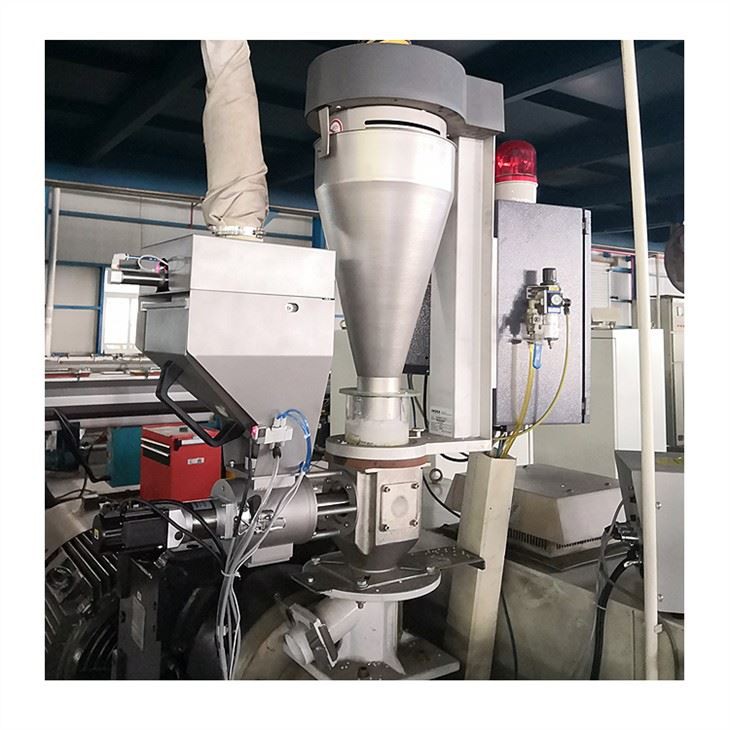

Walthmac pellet gravimetric side feeder can work separately on extruder/blown/injection line, or co-work with other raw material process equipment together, combined on single HMI to convenient control.
FAQ
1. What is a loss-in-weight screw feeder?
A loss-in-weight screw feeder is a device used to control the flow of materials in the plastic/chemical industry. It consists of a screw that rotates at a controlled speed, and a weighing system that measures the amount of material being dispensed. The feeder is designed to operate continuously and to maintain a constant flow rate of material.
2. What kind of materials can be used with the feeder?
The feeder is suitable for use with a range of materials, including powders, granules, flakes, and liquids. However, it is important to select the appropriate feeder design and configuration to ensure that the specific material being fed can be handled effectively.
3. What is the precision error of dosing with the feeder?
The precision error of dosing with the feeder is typically less than 0.3-0.5%. This means that the feeder can deliver highly accurate and consistent dosing of materials.
4. What is the weighing resolution of the feeder?
The weighing resolution of the feeder is typically 1 per 4 million. This high level of accuracy ensures that even small amounts of material can be dispensed precisely.
5. What kind of control unit does the feeder use?
The feeder uses a microprocessor control unit, which allows for precise control of the feeding process. It also enables the feeder to be integrated with other systems and equipment in the production line.
6. What communication interfaces are available with the feeder?
The feeder is designed to be compatible with multiple industrial fieldbuses, so it can easily be integrated into different types of production environments.
7. What kind of driven element does the feeder use?
The feeder uses a servo drive, which provides accurate and efficient control of the screw speed and feeding rate. This technology enables the feeder to operate reliably and smoothly, even at high speeds.
8. What materials is the feeder made of?
The feeder is typically constructed from high-quality materials such as stainless steel and aluminum, which are durable and resistant to corrosion.
9. What is the power consumption of the feeder?
The power consumption of the feeder ranges from 0.2kW to 1.8kW, depending on the specific model and configuration. Customized power supplies are also available if required.
.
