Plastic Mixer Gravimetric batch blender system for Extrusion
Products Description
Walthmac WBB Series Gravimetric batch blender system , automatically realize accurate bacthing and mixing pf muti-component raw materials, replace traditional manual and other ineffcient mixing methods, greatly improve production effciency and product quality, save costs.
In the raw material batch and mixture field, Walthmac has always been at the forefront of thr industry, both product quality and working stability all exceed international standard.
Technical Parameter
WBB-S type
| HMI | 7'' inch touch screen |
| Mechanism material | Touch material parts are all mabe by stainless steel, body made by carton steel, surface spray plastic treatment. |
| MIxing chamber sensor | Material level sensor |
| Feeding error | <0.1-0.3% |
| Control unit | Micro operation, Adaption algorithm |
Main Components
Data acquisition control unit
Cylinder
Display control unit
Solenoid valve
Air source processor
Benefit
1. It can auto-blend maximum 8 components with high precision ratio, reduce human error and labour cost.
2. Stable accuracy control material consumption reduce waste.
3. Formula change in real time, remain materials quick auto-clean, reduce downtime of machine, quick RIO.
4. Weighing measuring method, suitable for different densiny materials, high precision ratio guarantee.
5. Mutiple-feeding option ensure dosing accuracy
6. Remove big size display, easy maintain and operation.
7. Modular design, detachable structure, free-tool maintenance
8. Remote control function.(option)
Way of Installation

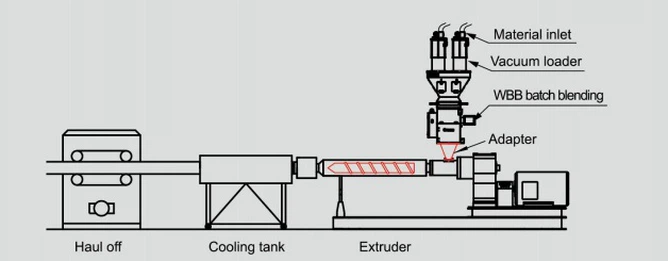

Online: Setting the Plastic Mixer Gravimetric batch blender on the extruder directly with an adapter. Using pipelines connect silo and material hoppers on the mixer.

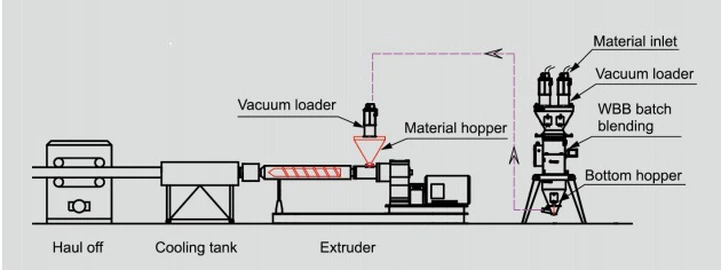

Offline: Install the Gravimetric Plastic Mixer on the floor,there will have twice conveying,one is from silo to material hoppers,another is from bottom hopper of machine to material inlets which on the extruder.
Applications
Plastic films/cables/pipes/production of raw material/ plastic modification and other industries like chemicals.
