The Gravimetric Mixer Machine is a high-precision mixer with an advanced adaptive control algorithm that self-corrects errors to ensure the accuracy of each batch. The unique anti-vibration structure and algorithm ensure the best measurement accuracy even in the vibration environment. The machine adopts high precision HBM load sensor and SMC pneumatic components to ensure stable and reliable operation. The exterior part of the equipment is made of stainless steel, carbon steel frame, and the surface treatment is polyester spray. The standard color is light gray, and the color can be customized according to user requirements. The machine is suitable for mixing particles, powders and other materials, widely used in chemical, pharmaceutical, food, plastics and other industries. As a key piece of modern production technology, the Gravimetric Mixer Machine provides customers with efficient, accurate and stable mixing solutions.
Our best selling of the batch mixing machine is the one with 6 components.
6 kinds of raw materials are prepared and blended in precise proportions.
Gravimetric batch mixing machine | ||||
Model | Output (kg/hr) | Max. Batch (kg) | Power(kw) | Base Dimension (mm) |
| WBB-H-01/06 | 85-120 | 1kg | 0.15 | 850*800*1300 |
| WBB-H-02/06 | 175-220 | 2kg | 0.25 | 850*800*1500 |
| WBB-H-04/06 | 300-400 | 4kg | 0.4 | 950*900*1850 |
WBB-H-08/06 | 530-650 | 8 kg | 0.6 | 950*900*1850 |
| WBB-H-12/06 | 800-960 | 12kg | 0.8 | 1200*1100*1950 |
| WBB-H-20/06 | 1330-1600 | 20kg | 1.1 | 1200*1100*1950 |
| WBB-H-30/06 | 2000-2400 | 30kg | 1.5 | 1300*1200*2200 |
| WBB-H-40/06 | 2700-3200 | 40kg | 2 | 1350*1250*2300 |
Gravimetric Mixer Machine advantages
The Gravimetric Mixer Machine is an advanced mixer with many advantages. Here are some of them:
1. Advanced adaptive control algorithm: The equipment adopts advanced adaptive control algorithm, which can self-correct the error of each batch. Even in vibratory environments, the measurement accuracy of the device can be optimized with unique anti-vibration structures and algorithms.
2. High-precision weighing sensor: The device uses high-precision weighing sensors to accurately measure the weight of each ingredient. At the same time, the equipment also uses high-quality SMC pneumatic components to ensure the stability and reliability of the equipment.
3. High-quality materials and processes: Some of the contact materials of the equipment are made of high-quality stainless steel, the frame is made of carbon steel, and the surface treatment is made of plastic spraying. The standard color is light gray, but the color can also be customized according to customer needs. These high-quality materials and processes guarantee the long life and high quality of the equipment.

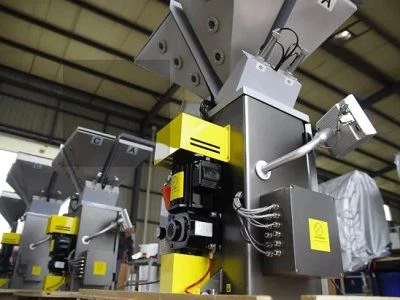

Equipment details display
1. Advanced self-adaptation control algorithm, Error self-correcting to each single batch, dosing precision can be optimized even under vibration based on unique anti-vibrating structure and algorithm
2. 7” true color of touch screen, multiple language choice and dynamic display of mixing process
3. Load cell: HBM load cell with high precision, SMC pneumatic elements.
4. Outlook:Part of material contact is stainless-steel made, carbon steel frame, surface treatment: Plastic spraying, Standard color；Light gray(customized color are available)
Gravimetric Mixer Machine fAQ
Q: 1. What is a Gravimetric Mixer Machine?
Q: 2. What is the unique anti-vibrating structure and algorithm?
Q: 3. What is a Load Cell?
Q: 4. What materials are used to manufacture the Gravimetric Mixer Machine?
Q: 5. What industries use Gravimetric Mixer Machines?
