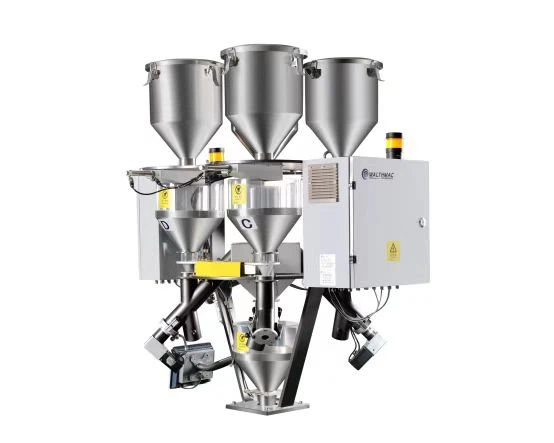

Walthmac gavimetric continuous blender is specially designed to work for high precision dosing&mixing of raw material like solid, powder and liquid.The system can automatically self-adjust to guarantee high precision outcome according to the pre-set formula value.Variety of configuration options are avaliable to satisdy customers different production condition/requirement such as various materials character,precision need,throughput requirement,manufacturing technique limit,etc.
Continuous Gravimetric Blenders advantage
Continuous Gravimetric Blenders are a must-have for plastic manufacturers who want to maintain consistency and improve the quality of their products. These blenders offer a range of benefits, including automatic material filling, high-precision metering, screw feeding for various materials, real-time formula changes, and optional control functions.
1. Automatic Material Filling: The Continuous Gravimetric Blenders come with an automatic material filling system that eliminates the need for manual intervention. This saves time and improves the efficiency of the manufacturing process.
2. High-Precision Loss-In-Weight Metering System: The blenders come with a high-precision loss-in-weight metering system that ensures accurate measurement of materials. This results in consistent quality and reduces material wastage.
3. Screw Feeding is Suitable for a Variety of Materials: The Continuous Gravimetric Blenders come with a screw feeding system that can handle different types of materials, including powders, granules, and liquids.
4. Closed-Loop Control of Servo System, Fast Response Speed: The blenders come with closed-loop control of the servo system, which offers fast response speed and ensures accurate material feeding.
5. Touch Screen Operation and Dynamic Flow Ratio Model Make Operation More Convenient: The blenders come with touch screen operation that makes it easy to change settings and adjust the parameters. The dynamic flow ratio model ensures optimum performance and accuracy.
6. Real-time Formula Change: The Continuous Gravimetric Blenders allow for real-time formula changes, which means that the users can adjust the recipe as per their requirements.
7. Meter Weight and Extrusion Output Control Functions are Optional: The blenders offer optional meter weight and extrusion output control functions, which allow for even greater control over the manufacturing process.
Specifications Configration:
Model | Output(dm³/hr） | Component | Size（mm） |
WCB-180/G | 180 | 1-4 | 700*700*1020 |
WCB-300/G | 300 | 1-4 | 850*850*1240 |
WCB-600/G | 600 | 1-4 | 950*950*1560 |
WCB-1200/G | 1200 | 1-4 | 1150*1050*1680 |
Products application
Continuous gravimetric blenders have become a crucial component in the plastic industry. These versatile machines have earned widespread usage in various fields of plastics manufacturing and processing.
continuous gravimetric blenders enable manufacturers to achieve high precision and accuracy in the mixing of raw materials, resulting in precise product formulations. These blenders prove exceptionally useful in the production of high-end parts for various plastic applications.
Continuous gravimetric blenders are also widely used in the film blowing process. This application has particularly benefited from the enhanced efficiency that the blenders offer. By providing accurate and consistent blending ratios, manufacturers can produce high-quality films with precise thickness and shrinkage control.
continuous gravimetric blenders are a valuable tool for the manufacturers of color and additive masterbatches. These materials require precision dosing to create a uniform result that meets customers' specific requirements.
Medical catheter Water Pipe
Cable Gas pipe
Film Plastic modification

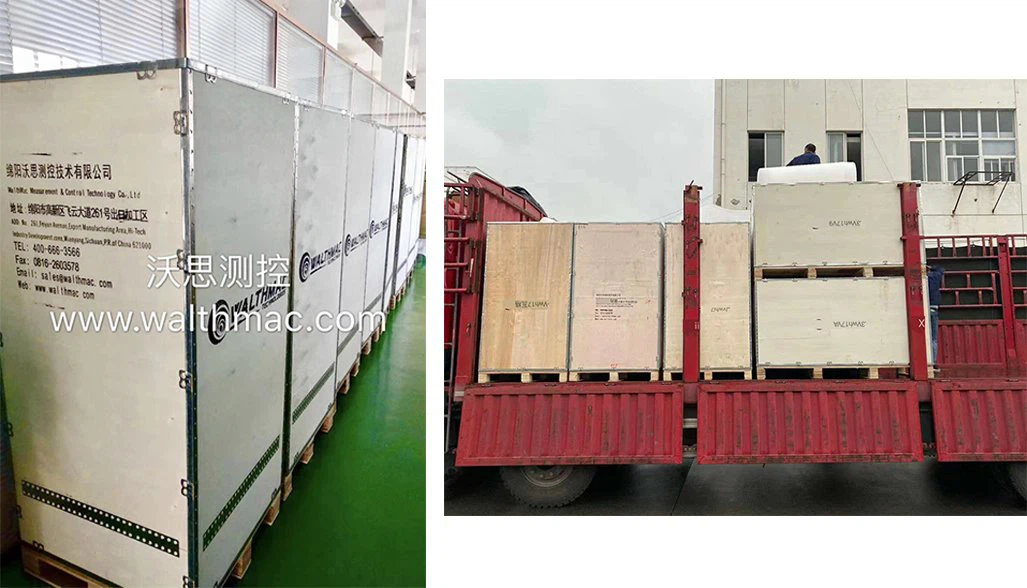

Continuous gravimetric blenders packaging and shipping
