The centralized negative pressure conveying system is an advanced machine designed for the efficient conveying of materials in various industries. These systems are widely used in the plastics industry to transport materials such as powders, pellets, pellets and other small items. Improve the production efficiency of plastic enterprises. walthmac will customize the centralized negative pressure conveying system according to the actual use of the enterprise.
Centralized negative pressure systems are designed with advanced technology to create a vacuum through a network of pipes, allowing them to move materials efficiently. These materials are then transferred from multiple sources to a single destination, eliminating the need for manual transfer.
Centralized negative pressure delivery systems are available in a variety of models, from MTS-500-ACE to MTS-5000-ACE. The output and dimensions of each model are different, the MTS-500-ACE has an output of up to 500 KG/HR with an outline size of 1200*700*2000mm, while the MTS-5000-ACE has an output of up to 5000 KG/HR with an outline size of 2200*1500*1600mm.
Products parameter
| Model | Output(kg/Hr) | Profile（mm） |
| MTS-500-ACE | ≥500 | 1200*700*2000*1 |
| MTS-900-ACE | ≥900 | 1200*700*2000*1 |
| MTS-1500-ACE | ≥1500 | 1300*820*2000*1 |
| MTS-2000-ACE | ≥2000 | 1800*950*2000*2 |
| MTS-3000-ACE | ≥3000 | 2000*1100*2000*2 |
| MTS-5000-ACE | ≥5000 | 2100*1200*2100*2 |
*1：conveying by Fan, *2 vacuum pump and auto-clean device provided.
Products Description
The whole system consists of power system, control center, filter system, valve system piping system and material loader.The core component is the vacuum autoloader which is independent research and development by ourselves.
Compared with the traditional conveyor system (manual feeding),The centralized conveyor system has the following advantages:
A. Save manpower and reduce workload.
B. Improve the environment of the workshop by moving the hopper dryer to the transportation area.
C. Save energy and cost.
D. Provide workers with a safer working environment.

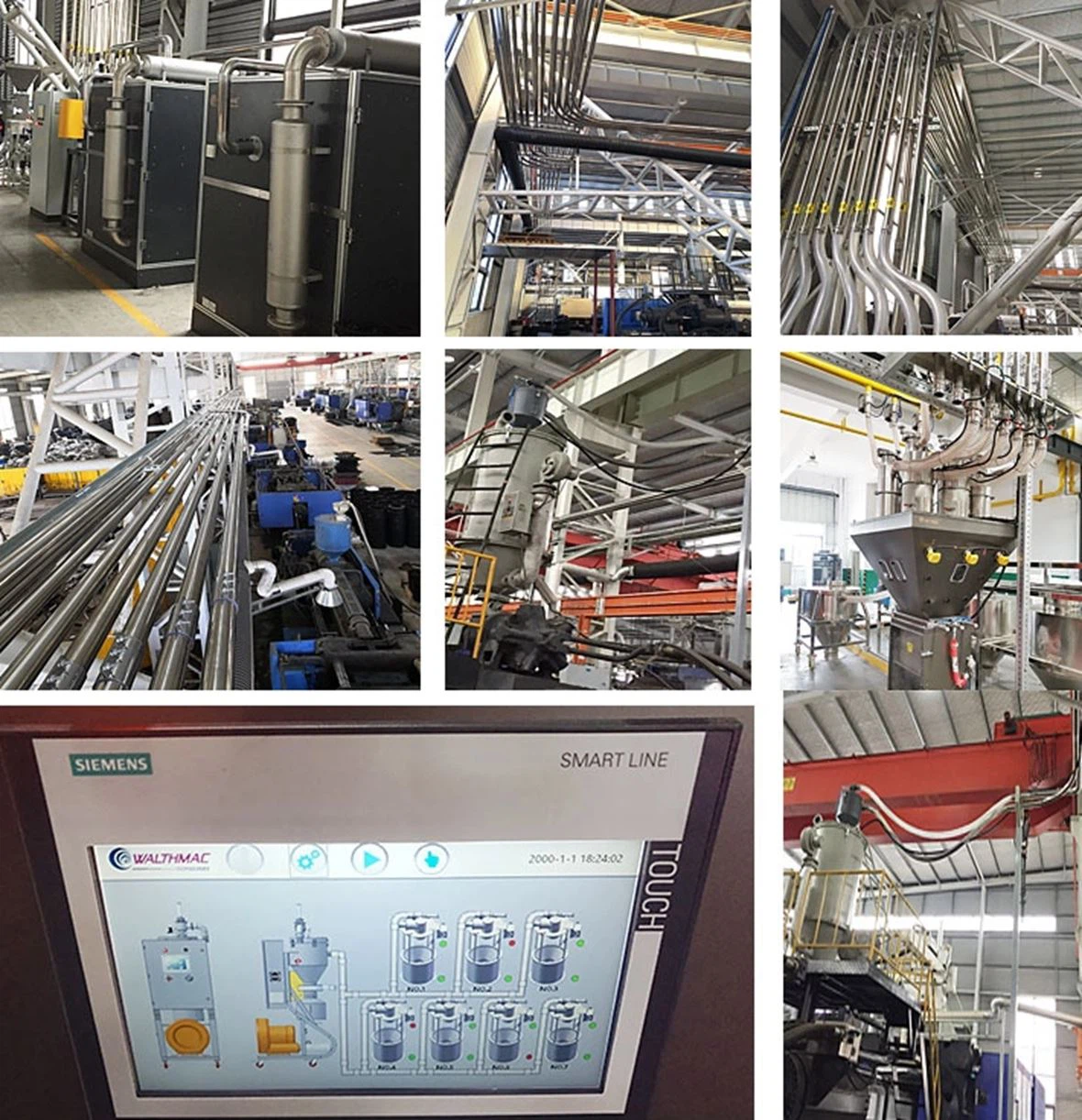

Products show
FAQ
Q: 1. What is a centralized negative pressure conveyor system?
Q: 2. What are the benefits of a centralized negative pressure conveyor system?
- Increased safety: Because the materials are conveyed using suction, there is no need for manual handling, reducing the risk of injury.
- Improved efficiency: The system can move materials quickly and efficiently, saving time and reducing labor costs.
- Reduced contamination: The closed system helps to prevent contamination from external factors such as dust and dirt.
- Customizable: The system can be tailored to suit specific material handling requirements, allowing for maximum flexibility in conveying different types of materials.
Q: 3. What materials can be conveyed using a centralized negative pressure conveyor system?

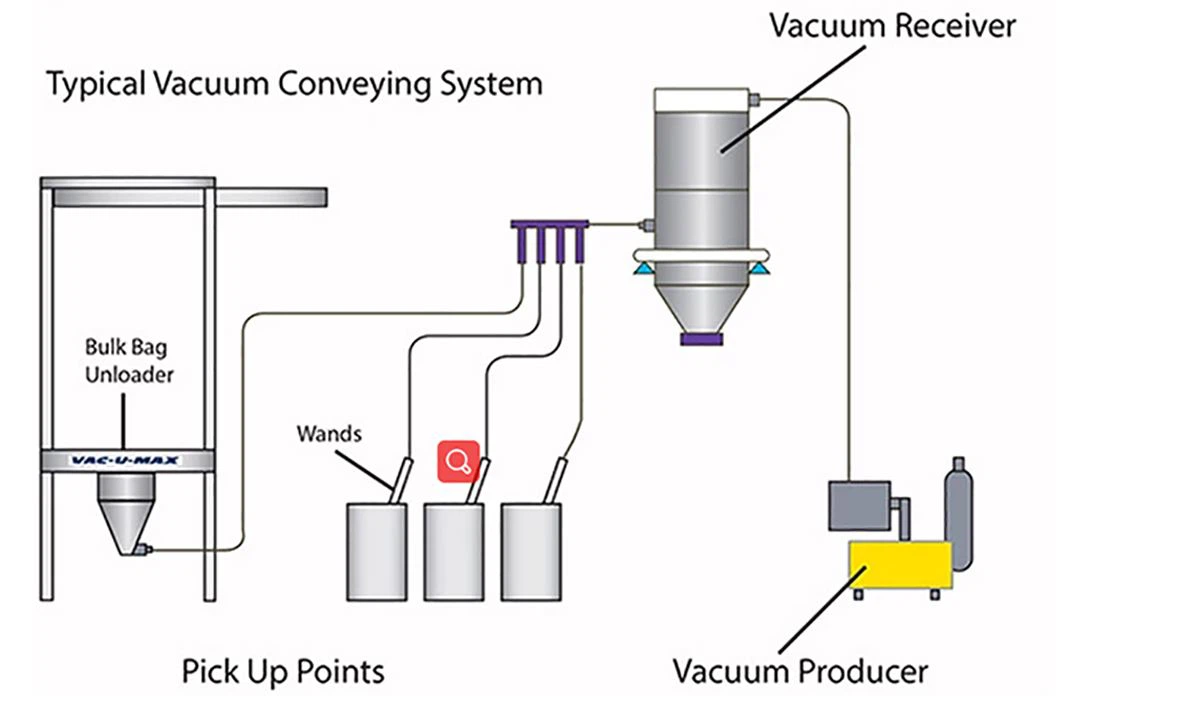

Q: 4. How does a centralized negative pressure conveyor system work?
Q: 5. What are the major components of a centralized negative pressure conveyor system?
- Central vacuum unit: This generates the suction needed to move materials through the system.
- Ducts: These connect the central vacuum unit to the destination points.
- Conveying attachments: These are used to convey the material from the source to the destination points. Examples include hoppers, receivers, and pick-up wands.

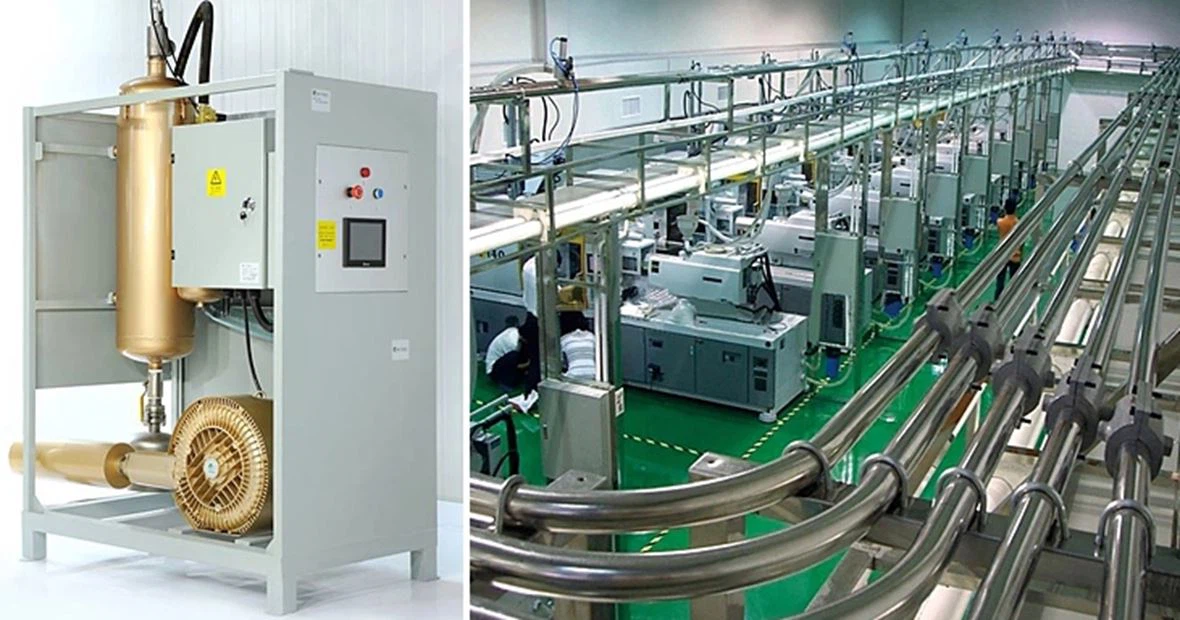

Products Application
The conveying system mainly used in material transportation in plastic production line such as plastic films, cables, pipes,etc.Bsides, it also used in chemicals industry such as pharmaceutical, granulation,etc.
